Schedule 40 DWV (Drainage Waste and Vent) PVC Fittings

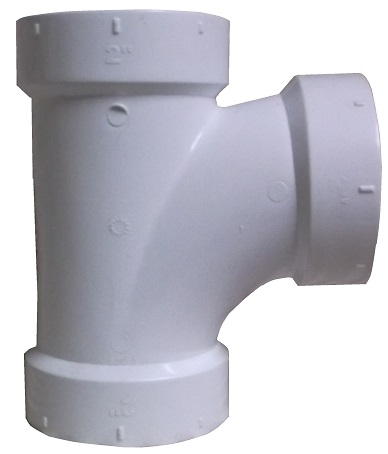

SANITARY TEE SCH40/DWV
1-1/2″
2″
3″
4″
6″
8″

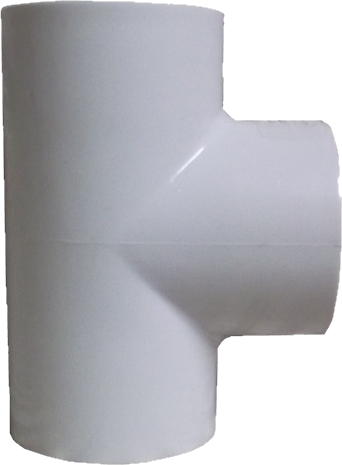

TEE HxHxH (STRAIGHT) SCH40/DWV
4″
6″

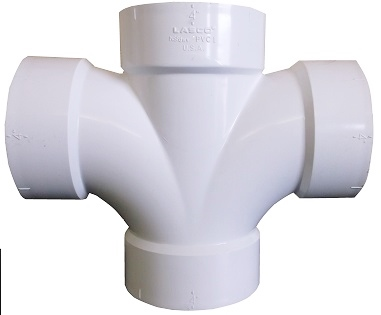

DBL/CROSS SANITARY TEE SCH40/DWV
1-1/2″
2″
3″

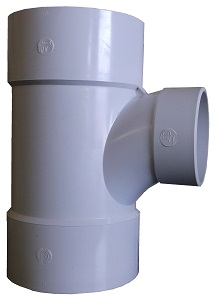

REDUCING SANI TEE SCH40/DWV
2″ x 1-1/2″ x 1-1/2″
2″ x 2″ x 1-1/2″
3′ x 3″ x 1-1/2″
3″ x 3″ x 2″
4″ x 4′ x 1-1/2″
4″ x 4″ x 2″
4′ x 4″ x 3″
6″ x 6″ x 4″

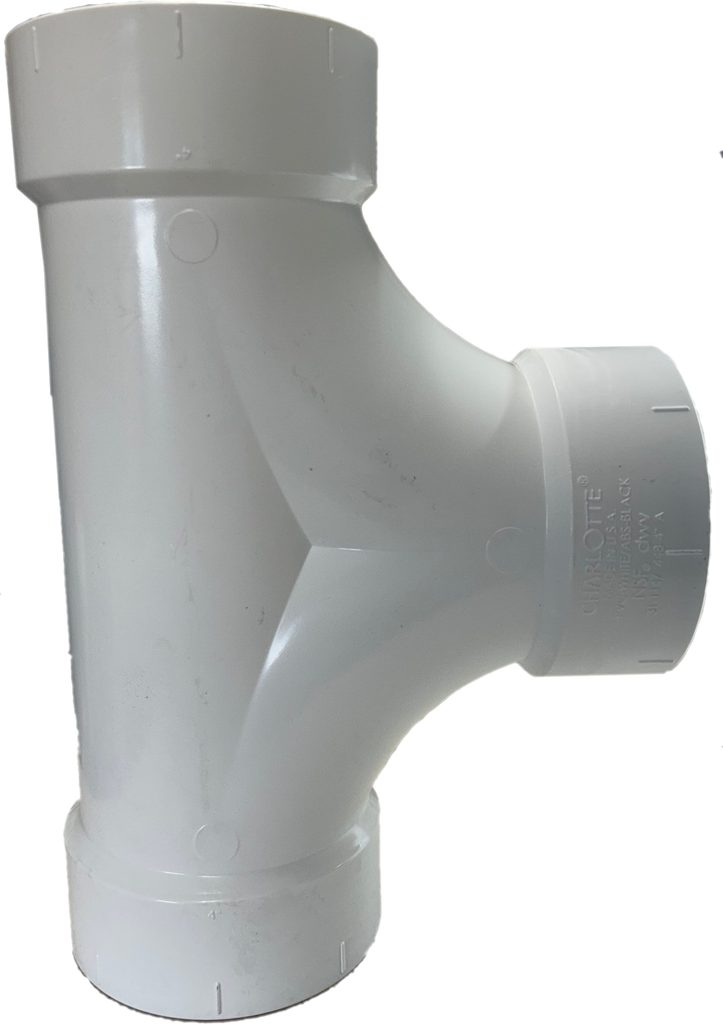

2-way CLEANOUT TEE SCH40/DWV
4″

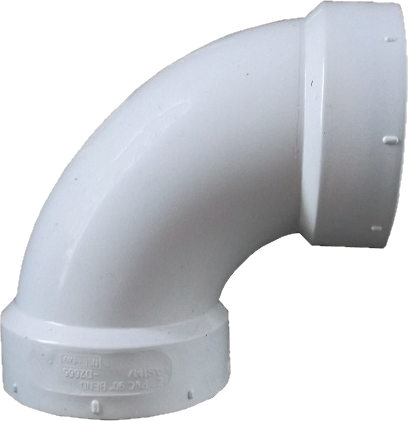

ELBOW 90 SCH40/DWV
1-1/2″
2″
3″
4″
6″

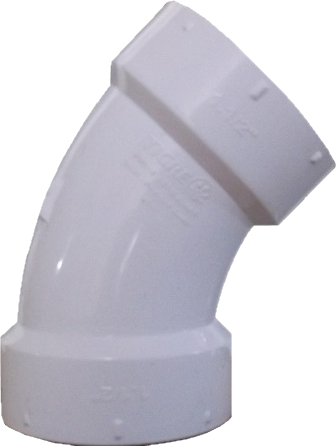

ELBOW 45 SCH40/DWV
1-1/2″
2′
3″
4″
6″

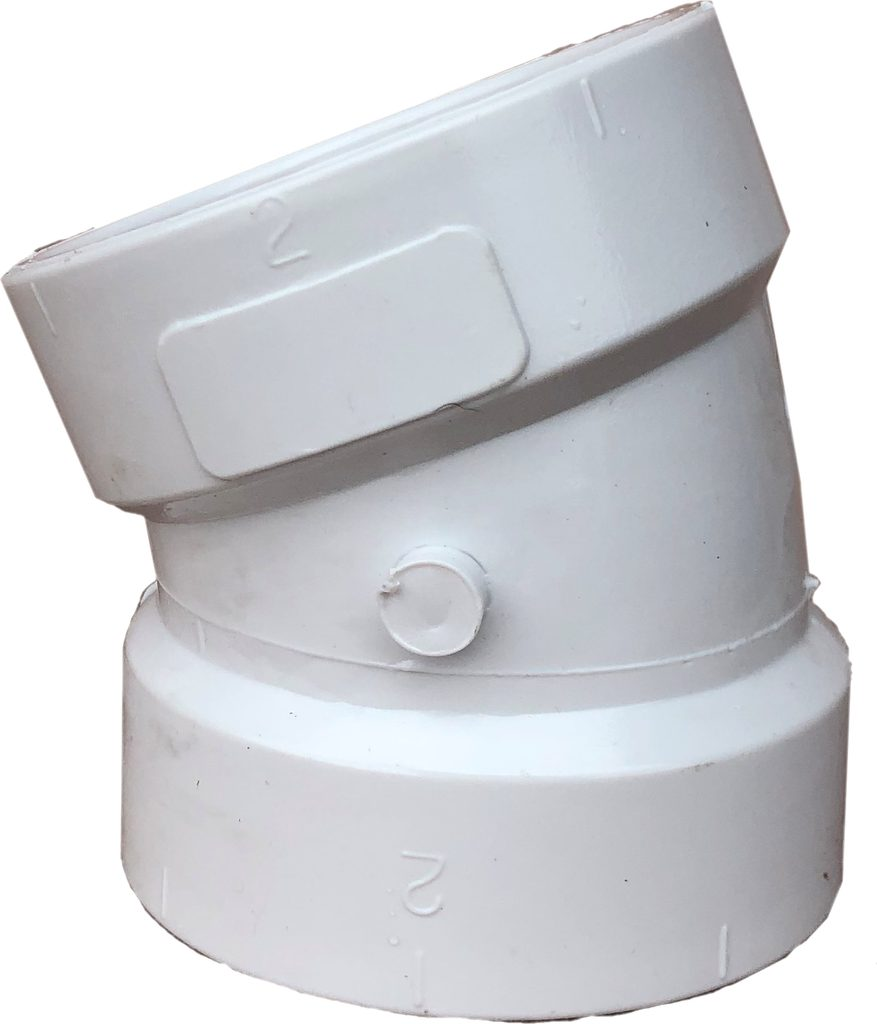

ELBOW 22.5 SCH40/DWV
1-1/2″
2″
3″
4″
6″

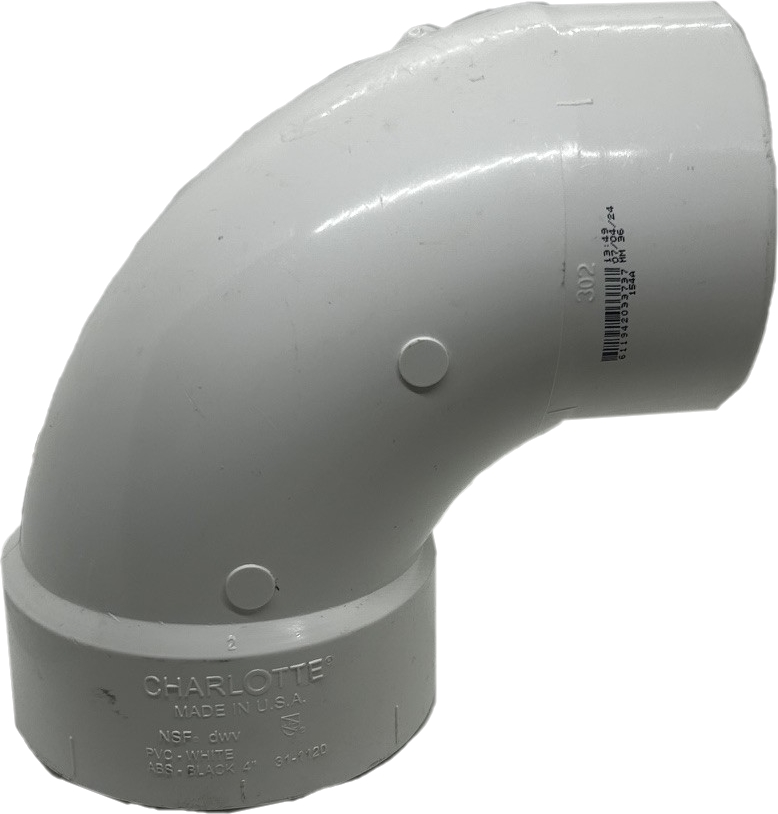

STREET ELBOW 90 SCH40/DWV
1-1/2″
2″
3″
4″
6″

STREET ELBOW 45 SCH40/DWV
1-1/2″
2″
3″
4″
6″

STREET ELBOW 22.5 SCH40/DWV
1-1/2″
2″
3″
4″
6″

WYE SCH40/DWV
1-1/2″
2″
3″
4″
6″
8″

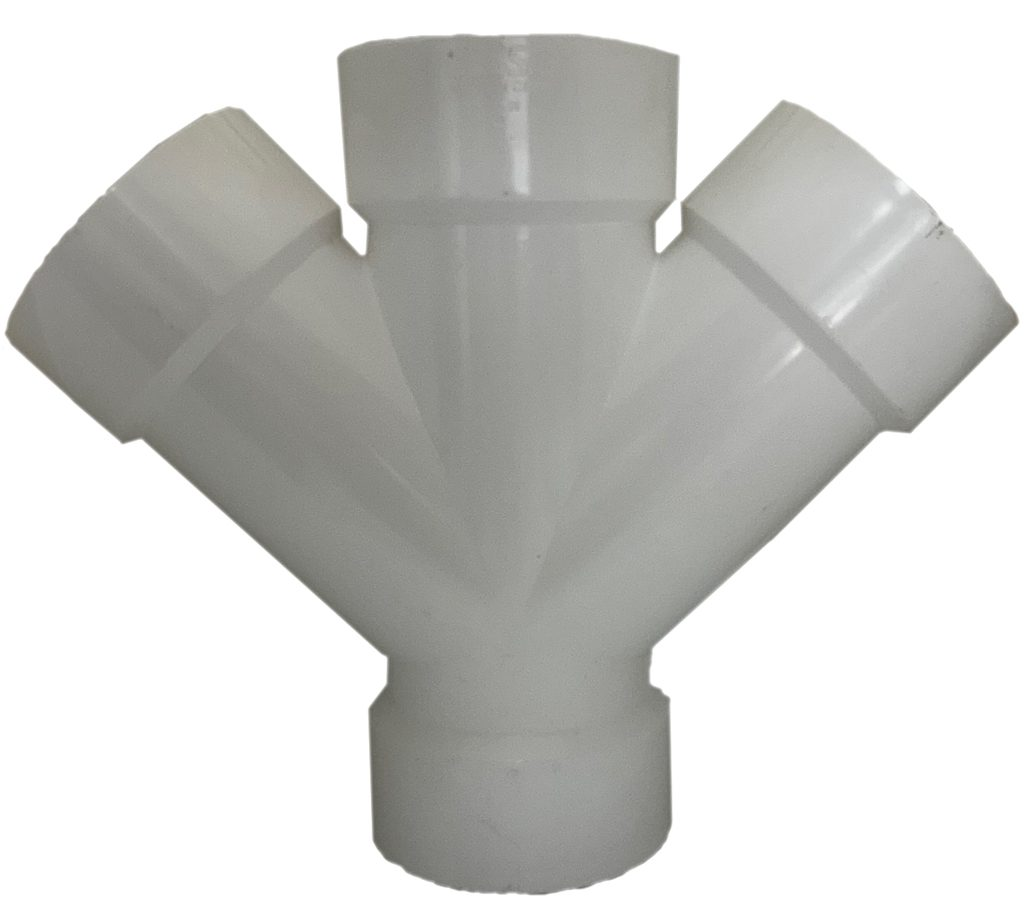

DOUBLE WYE SCH40/DWV
2″ x 2″
3″ x 3″
4″ x 4″

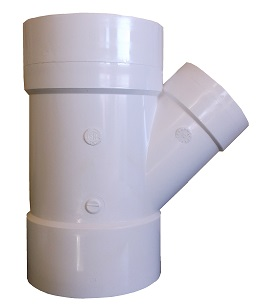

REDUCING WYE SCH40/DWV
2″ x 1-1/2″
3″ x 1-1/2″
3″ x 2″
4″ x 1-1/2″
4″ x 2″
4″ x 3″

STOP COUPLER SCH40/DWV
3″
4″
6″
8″
10″
12″

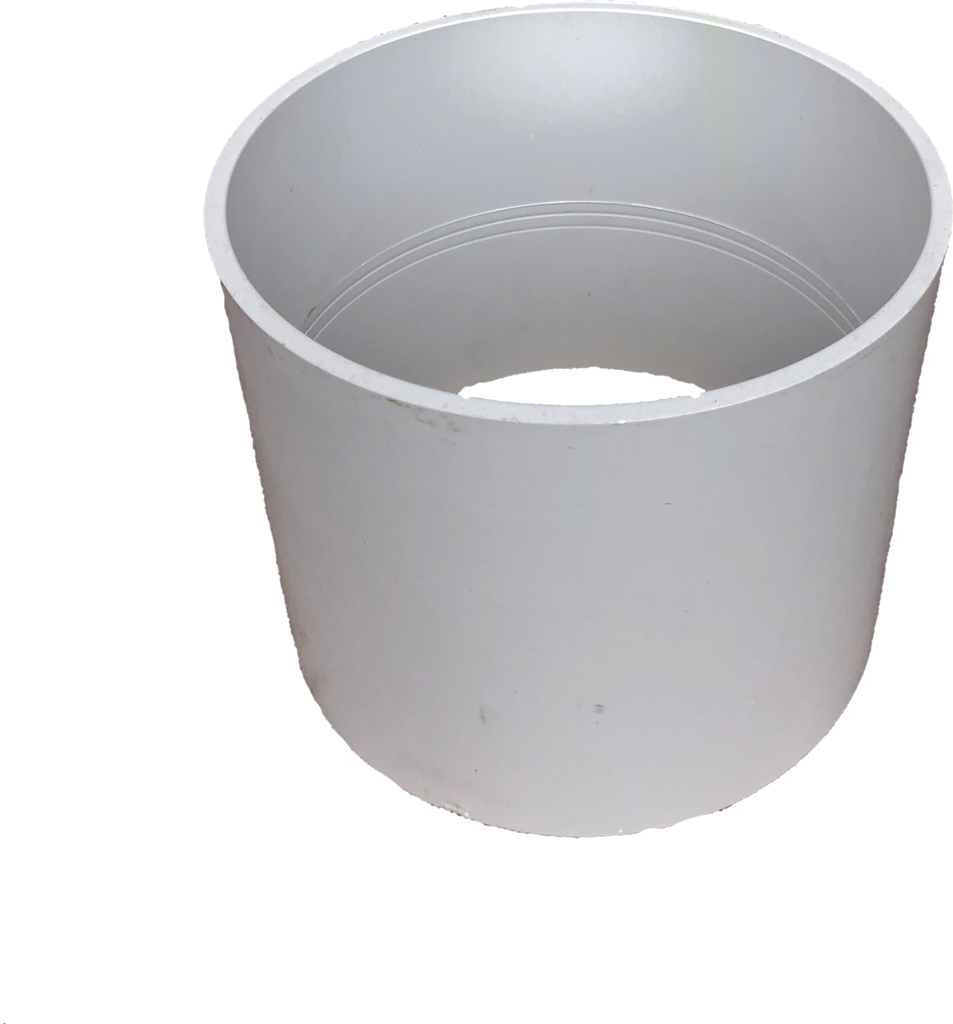

REPAIR COUPLER SCH40/DWV
3″
4″

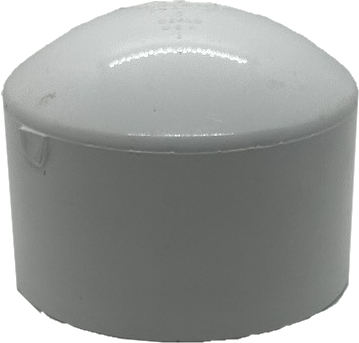

CAP DWV
2″
3″
4″
6″
8″

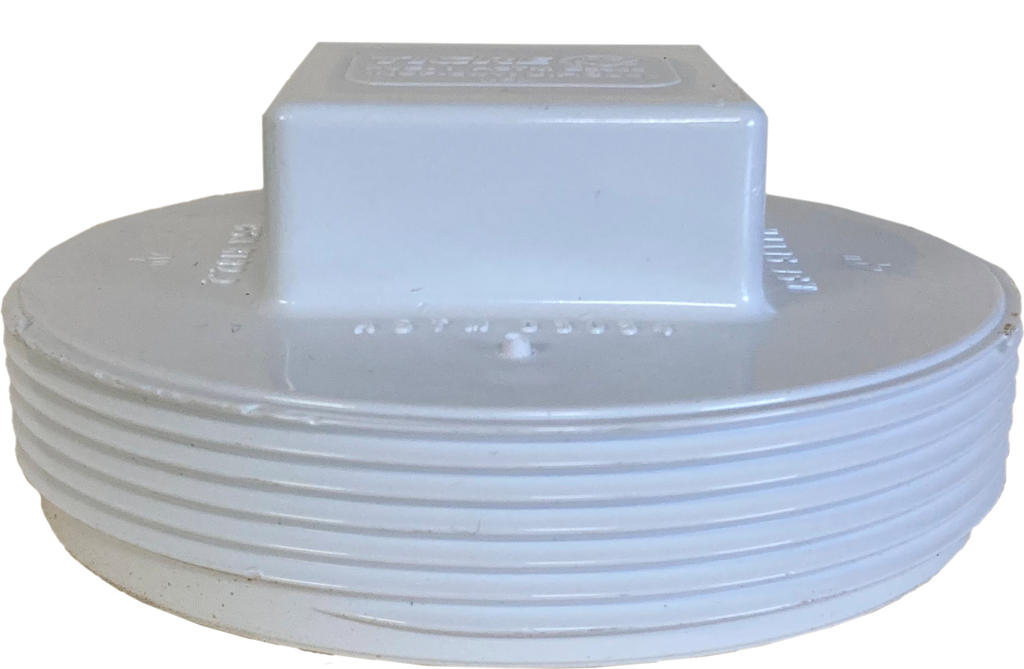

THREADED PLUG DWV
1-1/2″
2″
3″
4″
6″

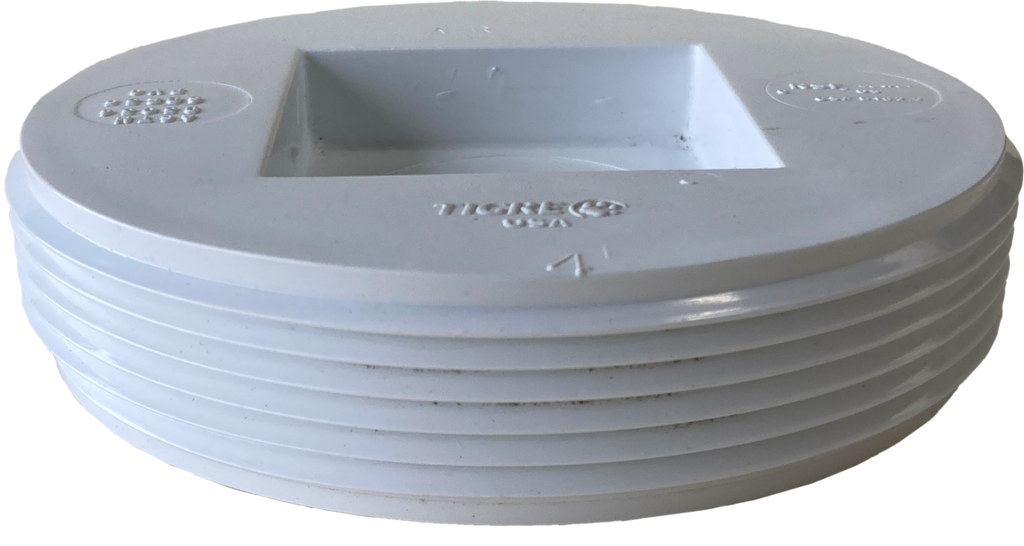

THREDED PLUG-INVERTED DWV
4″

FEMALE THREADED CLEAN OUT ADAPTER DWV
2″
3″
4″
6″

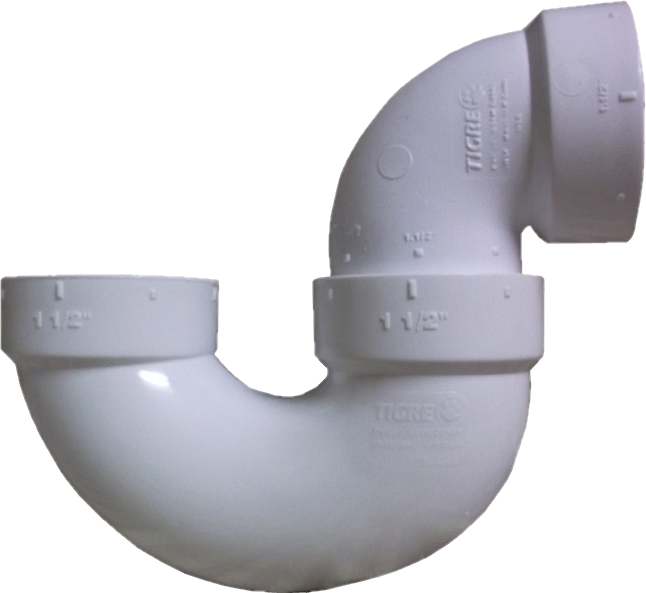

PTRAP DWV – 2 pc fitting
1-1/2″
2″
3″
4″

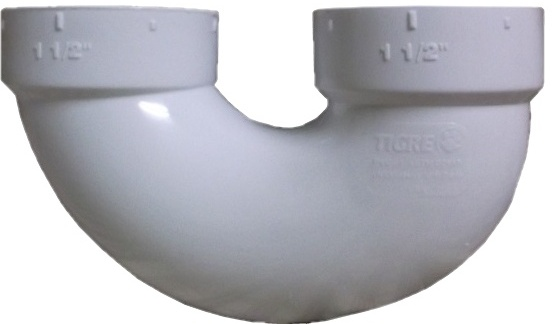

PTRAP (RETURN “U” BEND ONLY) DWV
2″
3″
4″

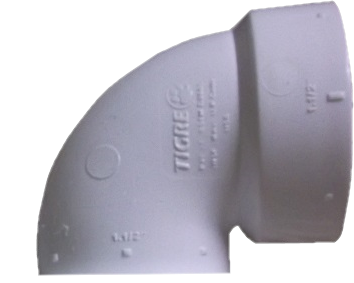

PTRAP (VENT ONLY *hub X hub) DWV “short 90 elbow”
2″
3″
4″

MIPT (Male Iron Pipe Threads) x HUB ADAPTER DWV
3″
4″
6″

SCH40/DWV HUB X SCH40/DWV HUB REDUCER COUPLER
2″ x 1-1/2″
3″ x 1-1/2″
3″ x 2″
4″ x 1-1/2″
4″ x 2″
4″ x 3″
6″ x 4″

SCH40/DWV SPIG X SCH40/DWV HUB REDUCER BUSHING
2″ x 1-1/2″
3″ x 1-1/2″
3″ x 2″
4″ x 2″
4″ x 3″
6″ x 4″

SCH40/DWV HUB X SCH40/DWV HUB ECCENTRIC REDUCING COUPLER
6″ x 4″

CLOSET FLANGE METAL
3″ x 4″

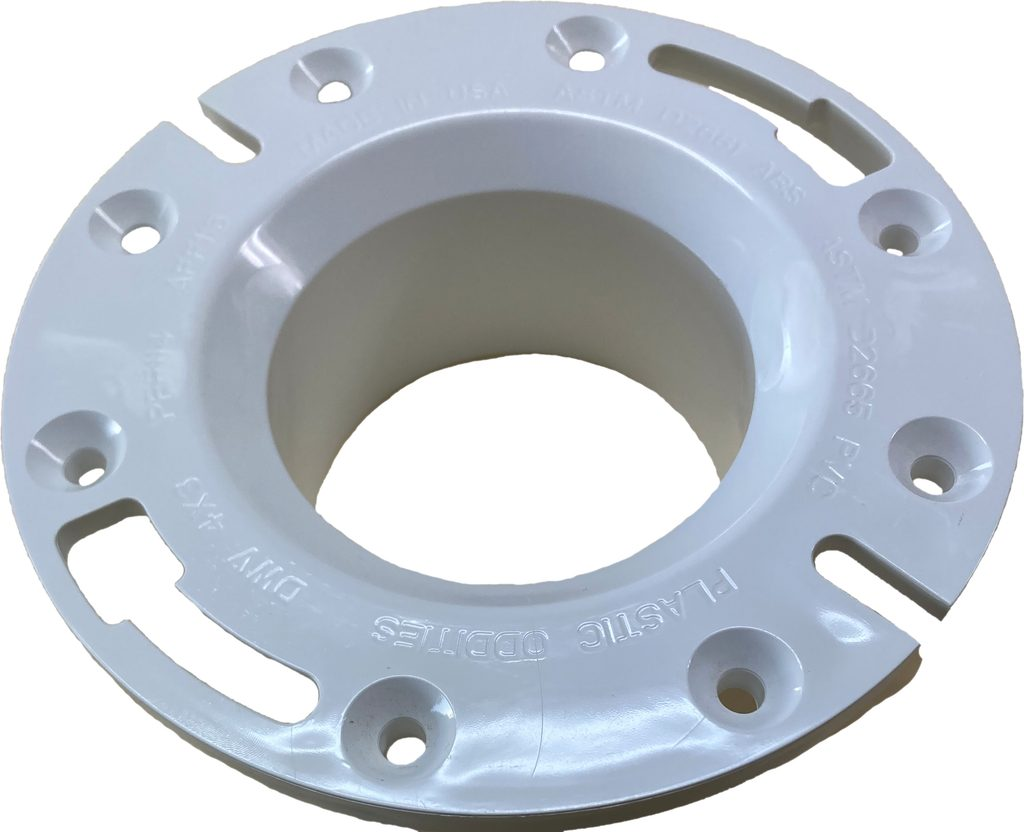

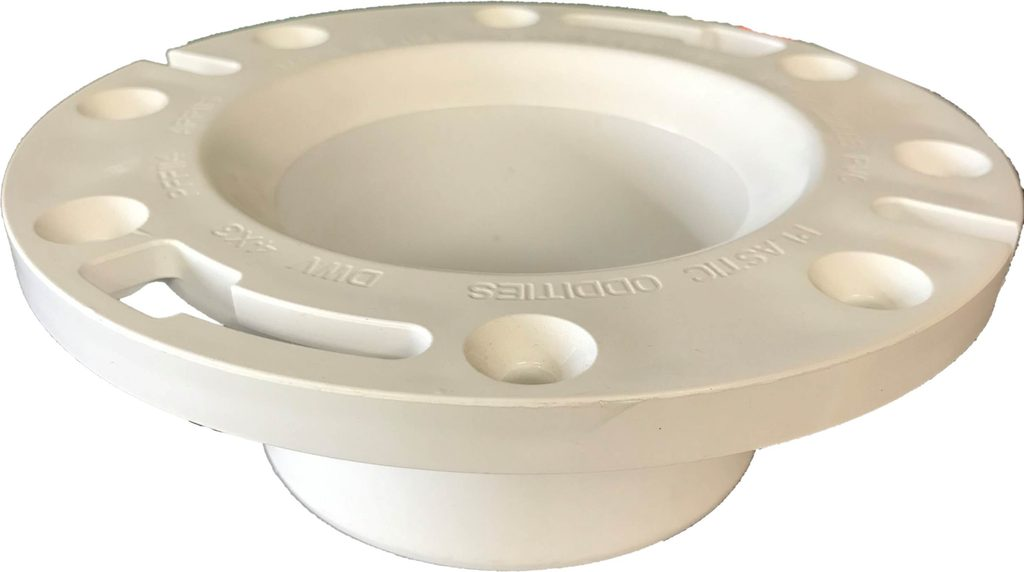

FLANGE FLUSH
3″
4″
6″

FLANGE HUB
4″
6″
8″

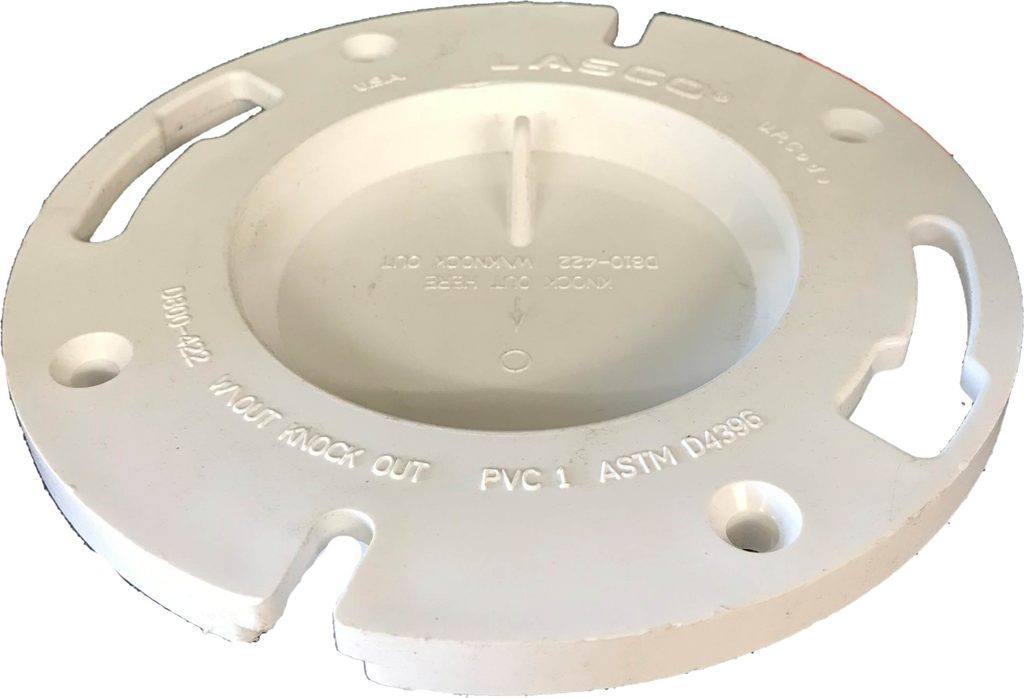

FLANGE WITH KNOCKOUT
4″
6″

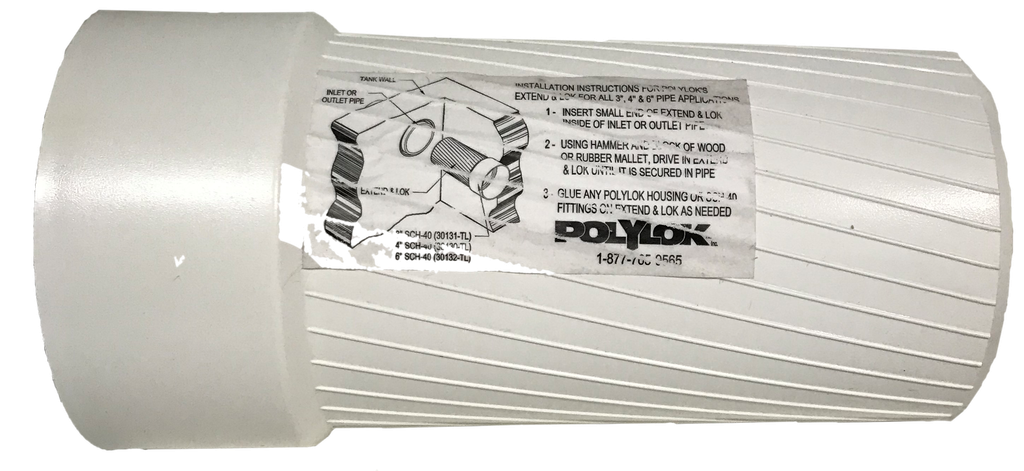

EXTEND & LOK ADAPTER (POLYLOK)
3″
4″
6″

DOWNSPOUT ADAPTER SCH40
2″ x 3″ x 4″
3″ x 4″ x 4″
